Automatic Measurement Laser-Guided Wheel Balancer

Product Features

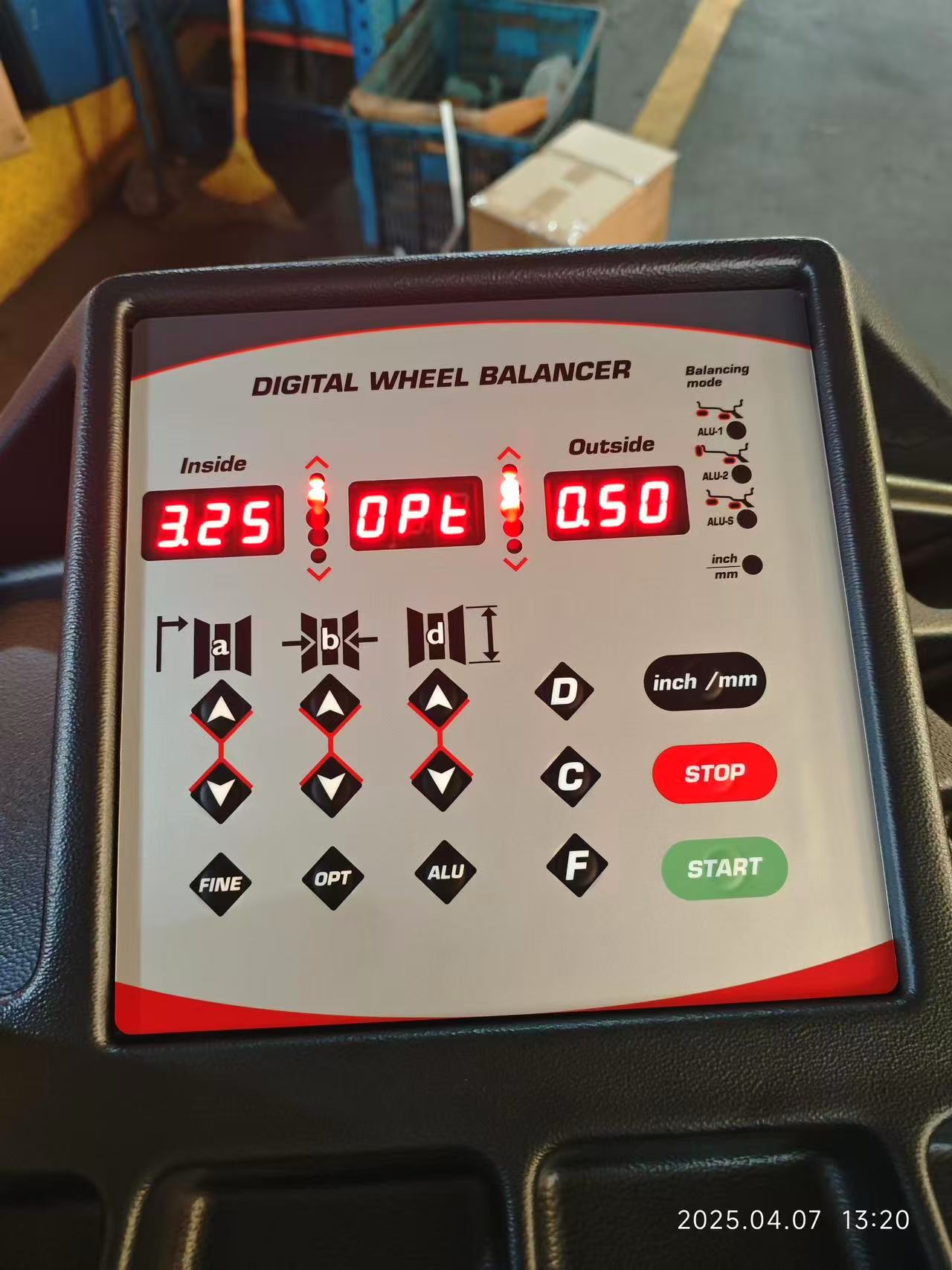

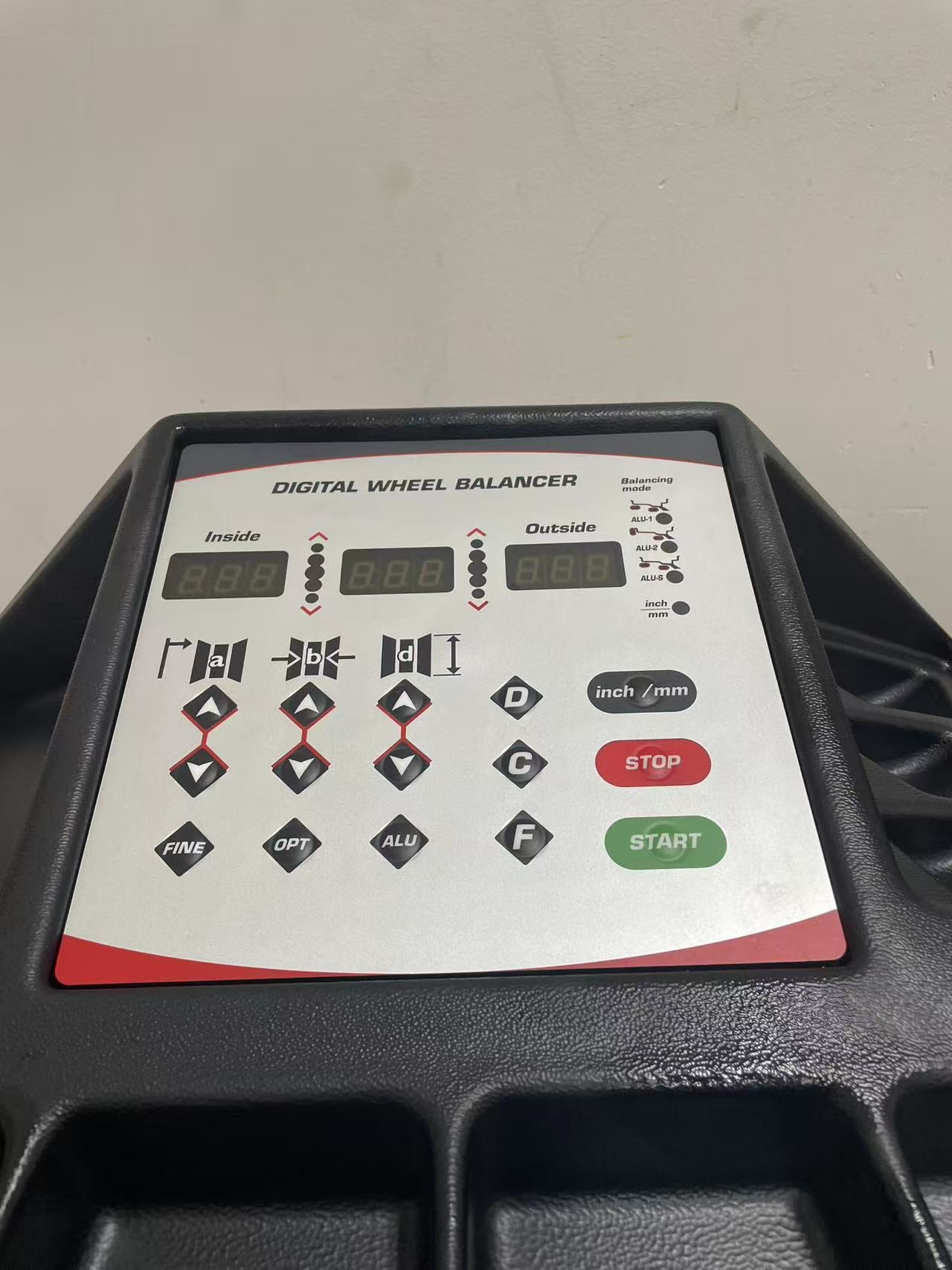

• Equipped with a 9-digit digital tube display, offering a flexible and user-friendly interface

• Multiple balancing operation modes available, supporting clip-on and adhesive weight balancing

• Electronic measuring arm automatically inputs wheel-related parameters

• Features self-calibration for both the machine and the electronic measuring arm

• Built-in automatic fault diagnosis and protection functions

• Compatible with a variety of steel and aluminum alloy wheel structures

Technical Specifications

• Rim Width: 1.5"–20" (40mm–510mm)

• Rim Diameter: 10"–24" (256mm–610mm)

• Motor Power: 0.2kW

• Power Supply Voltage: 220V

• Balancing Accuracy: ±1g

• Balancing Speed: 200 r.p.m

• Balancing Cycle Time: 8 seconds

• Noise Level: ≤70dB

• Gross/Net Weight: 95kg / 75kg

• Max Wheel Weight: 65kg

• Packing Dimensions: 915 × 760 × 1180mm
