Northern Tools

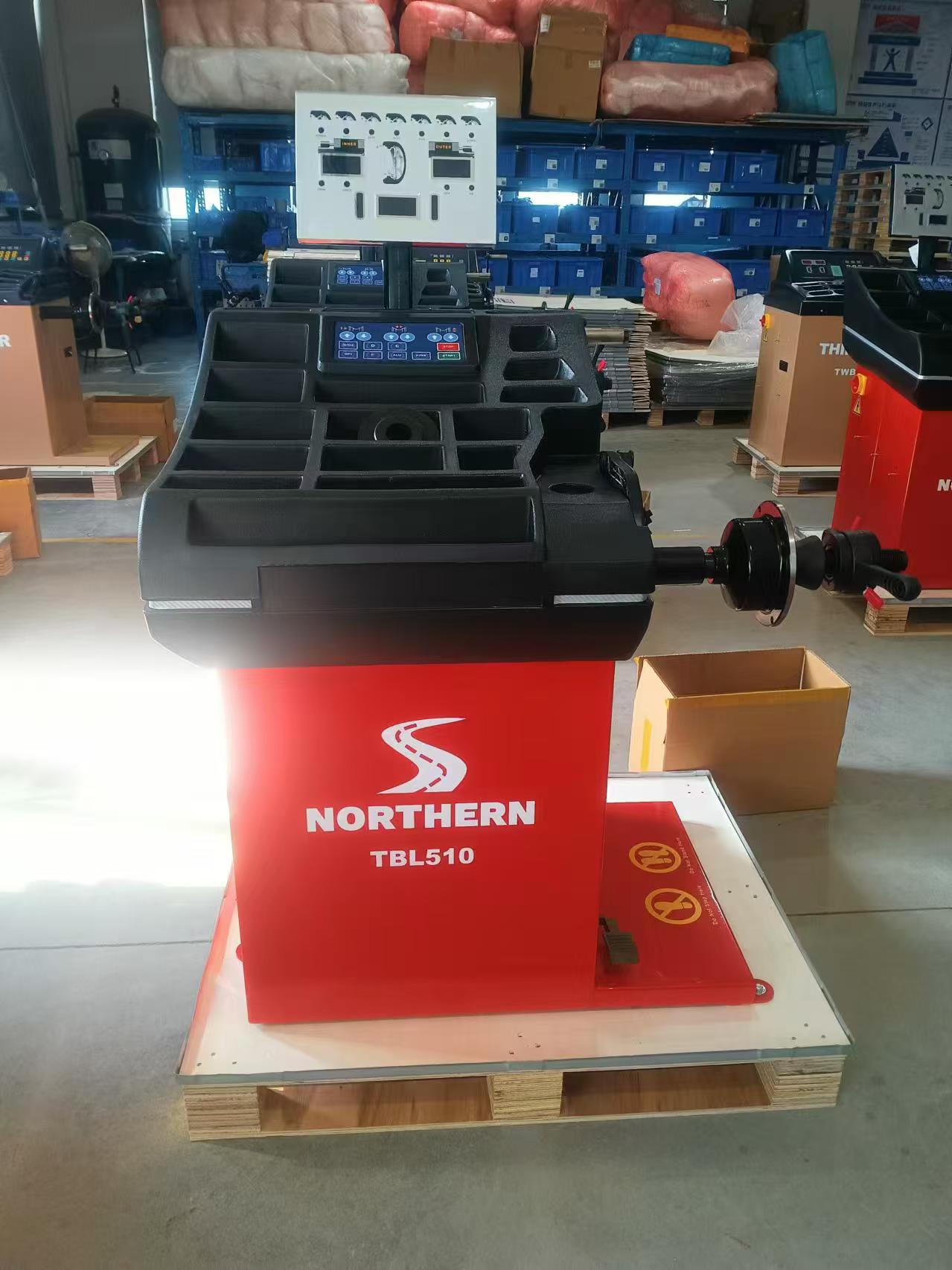

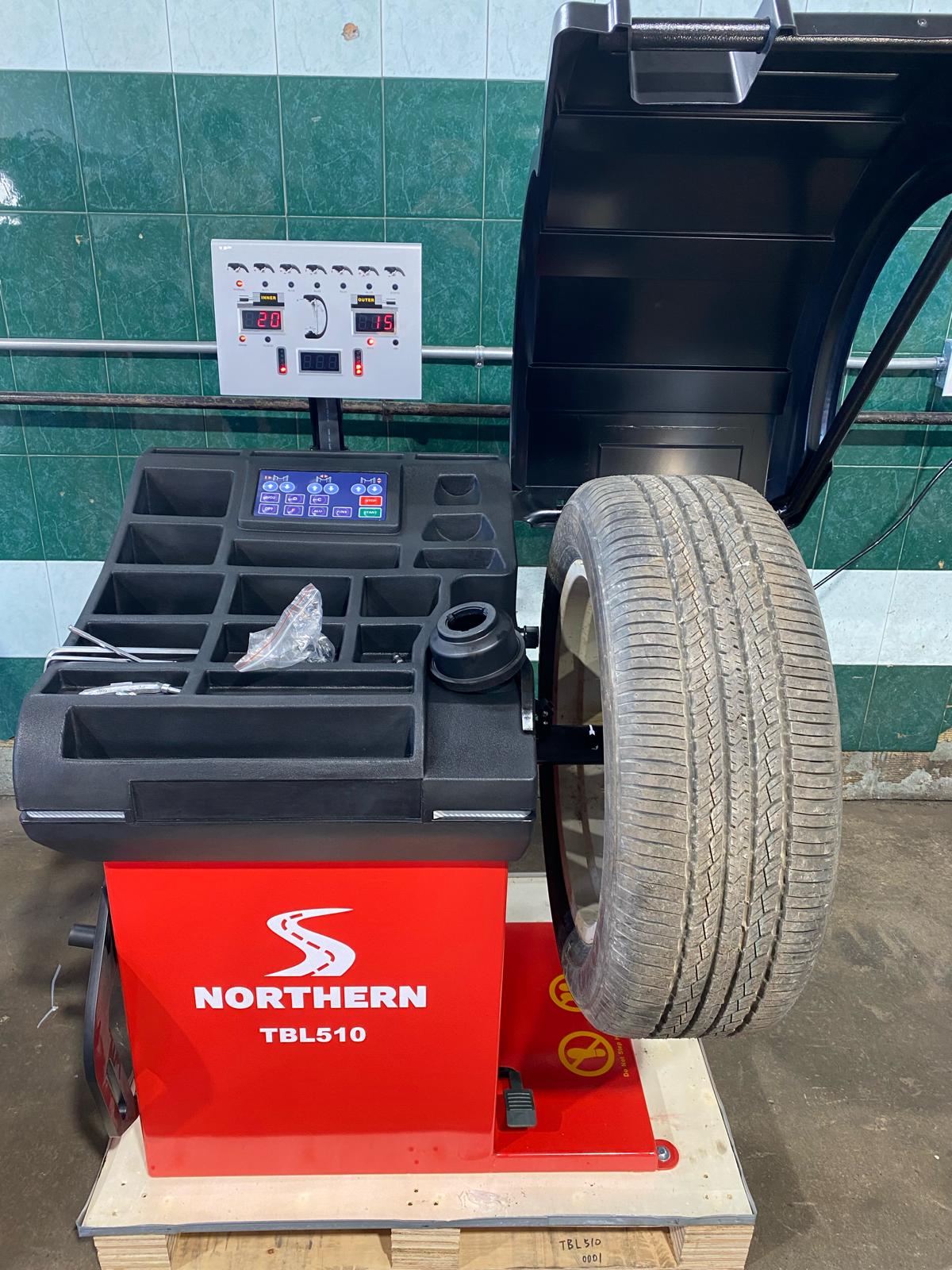

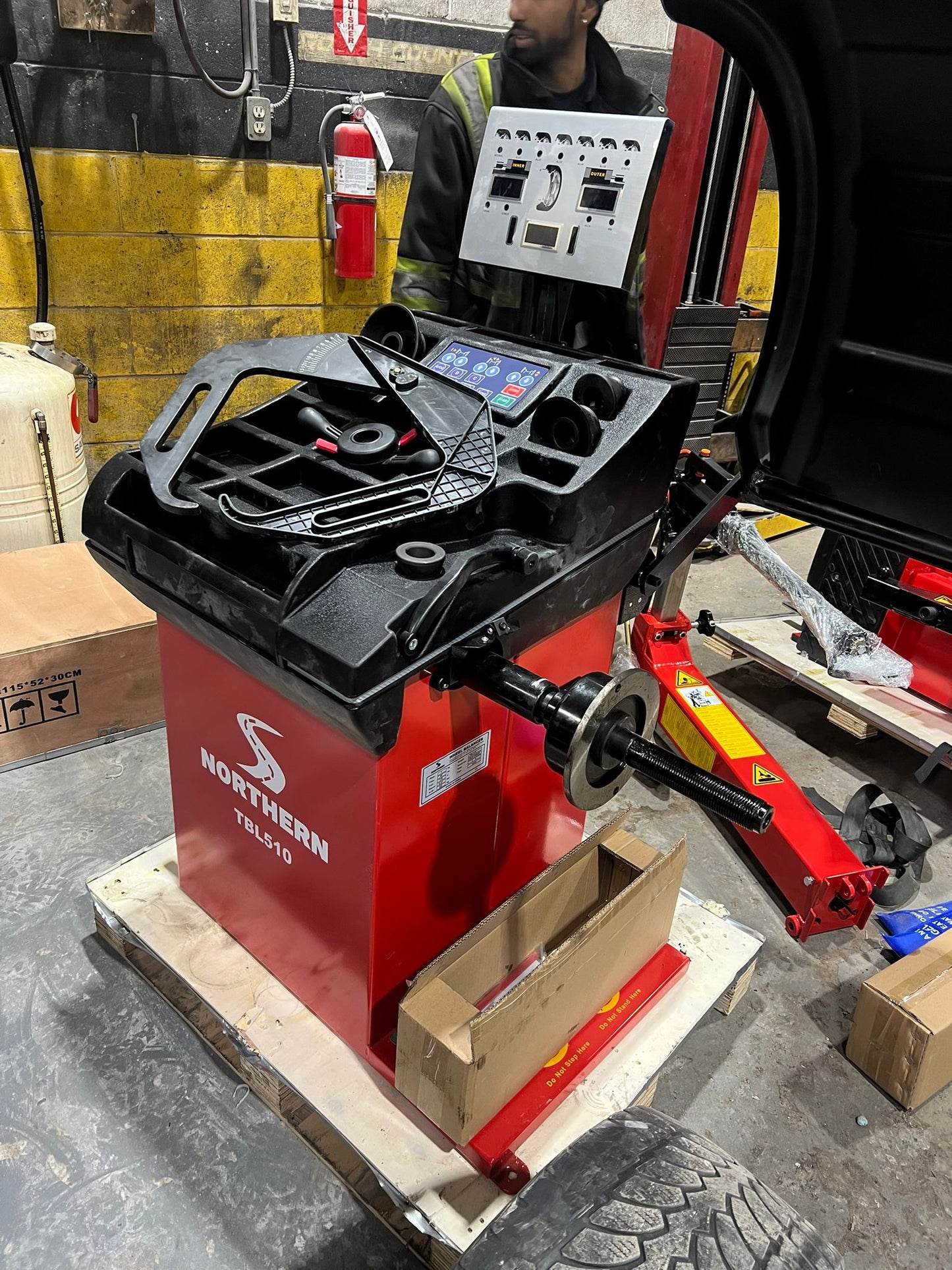

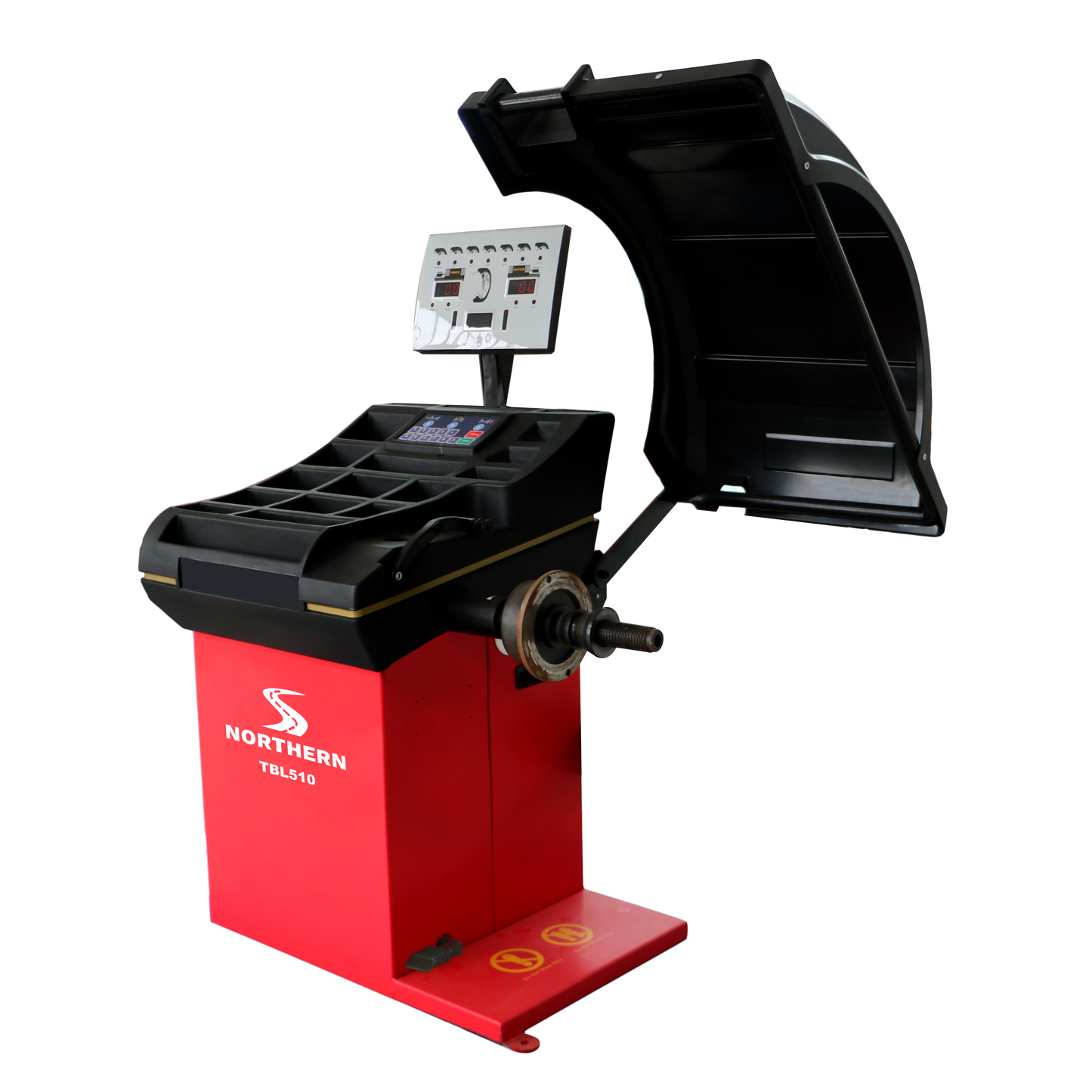

Northern Fully Automatic Laser Tire Balancer TBL-510

Northern Fully Automatic Laser Tire Balancer TBL-510

Regular price $3,195.00 CAD
Regular price $3,999.00 CAD Sale price $3,195.00 CAD
Sale Sold out

Features:

1.128 angular position. Less than 3 degree on imbalances position.

2.Imbalance accuracy is only 1g difference.

3.LED display panel with laser point. Automatic measure.

4.Extra long shaft, tire width is up to 415mm.

5.Cabinet with side plate design to support the cabinet.

6.Strong molding with high quality material.

Specifications:

  • Wheel hub diameter range: 10″ – 30″
  • Max tire width: 415mm
  • Tire diameter: 1080mm
  • Distance to spin flange: 10″
  • Maximum tire weight: 65kg
  • Balance accuracy: 1g
  • Balance speed: 150-220RPM
  • Operation display interface: LCD+ keyboard
  • Detective location: 128
  • Ounce/Gram conversion option: yes
  • ALU mode: 7
  • Voltage Options: 110V

Standard fittings

  • 4 pcs for cone adapter set
  • Wheel hub caliper
  • 100g balance weight * 1 pcs.
  • Balance weight
  • Hexagon wrench * 1 pcs.



User Manual Link
