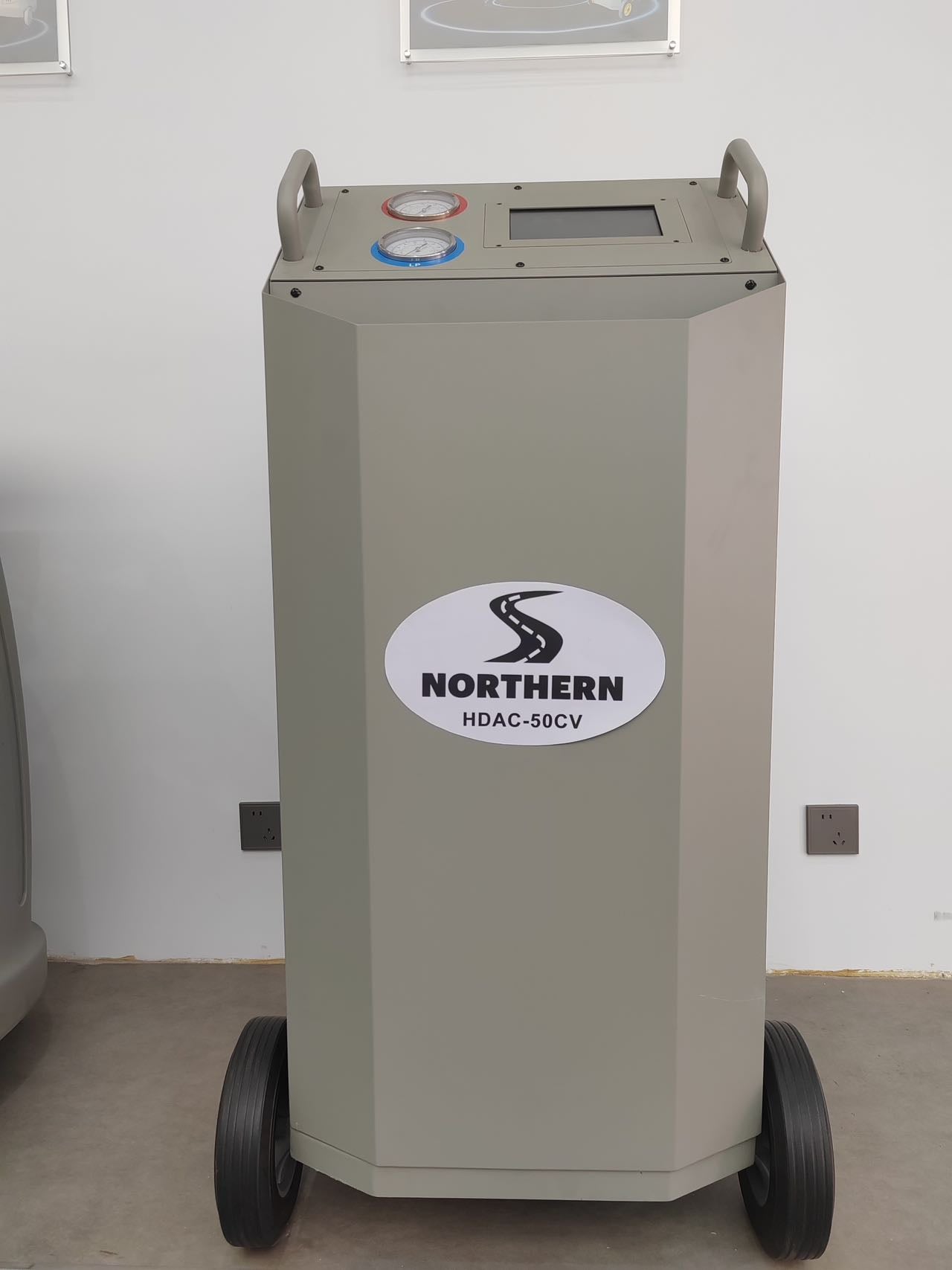

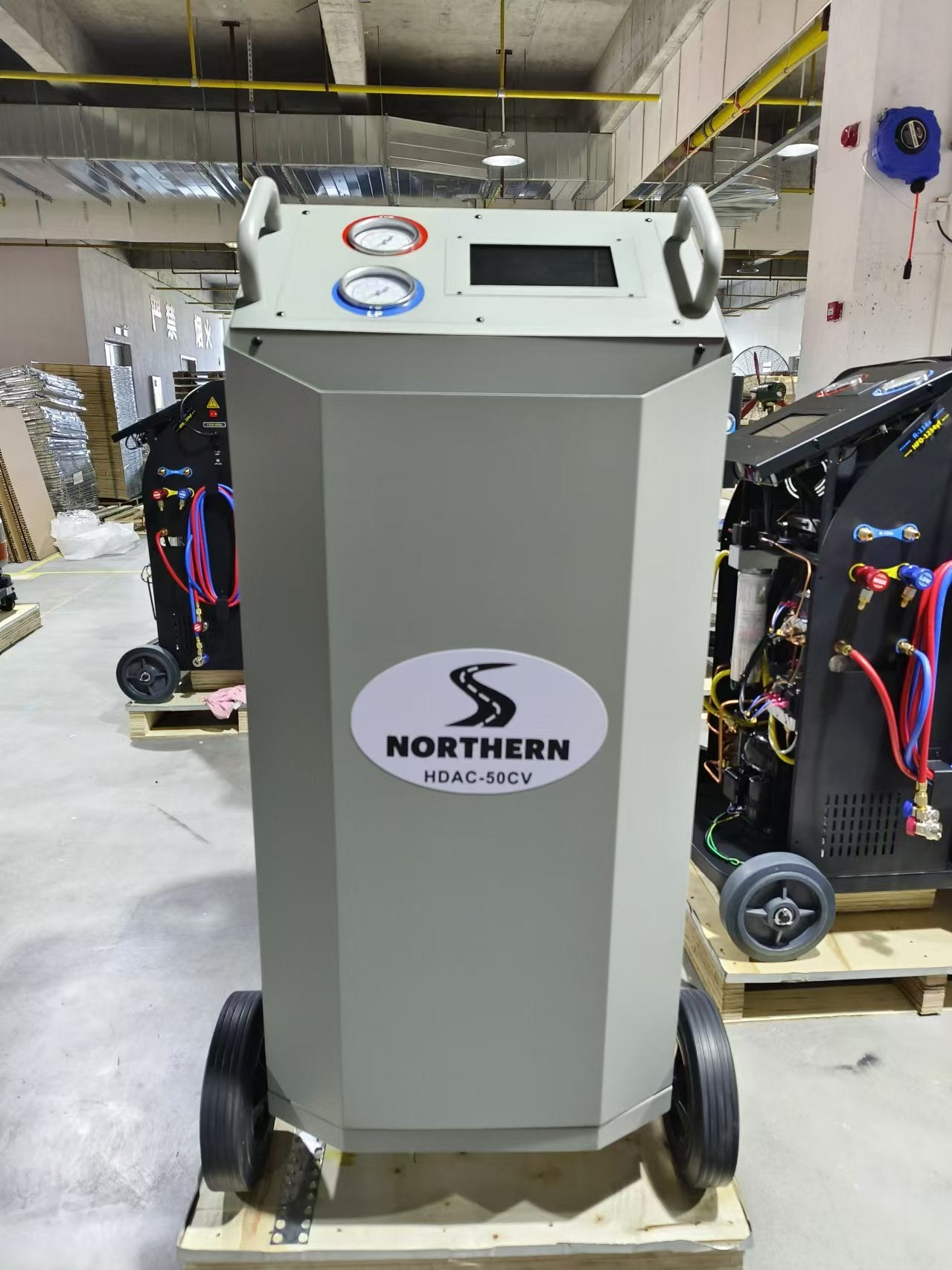

Northern R134a AC Refrigerant Recovery Machine for Bus HDAC-50CV

Features:

• The HDAC-50CV, robustly and massively built, is designed for the needs to handle the refrigerant and oil of A/C of buses, vans, cars, as well as agricultural, contructive, commercial, rail and other particular vehicles which apply R-134a as A/C cooling medium.

Functions:

1.Recovery

2.Vacuum

3.Oil injection

4.Charge

5.Fully automatic

Specifications:

1.Hand valves free

2.Input power: AC110V±10%~50/60Hz

3.Recovery rate: ≥95%

4.Compressor output: 3/4HP(110V)

5.Vacuum pump capacity: 8.0cfm

6.Accuracy of gas cylinder load cell: ±30g

7.Gas cylinder: 50L, 50Kg Max.

8.Oil bottle capacity: 400ml

9.Max. Pressure: 20bar

10.Charge speed: 2Kg/Min(max.)

11.Display: 7" Touch Screen

12.Refrigerant hose: 5m

13.High pressure gauge range: -1~30bar

14.Low pressure gauge range: -1~16bar

15.Highly integrated pipeline manifold

16.Pressurization to speed up used oil discharge

17.Automatic service reminding

18.Average gas state refrigerant recovery speed: 980g/min

19. Gross weight: 120KG; Net weight: 96KG

20. Package: 790*675*1315mm; Unpacked: 760*583*1155mm

Wrranty:

AC Machine comes with 2 year warranty. The filter is not included. Filter is $220 per unit. Each filter can be use for 300kg gas. We have all parts available in our warehouse or contact us for service inquiry.
